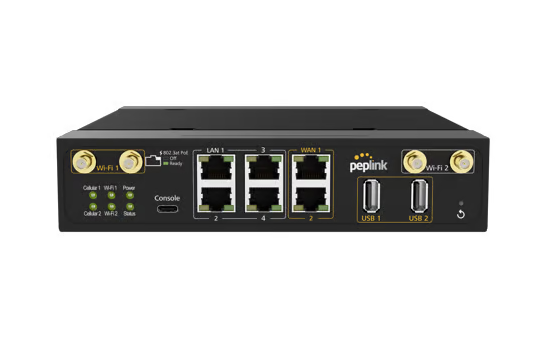

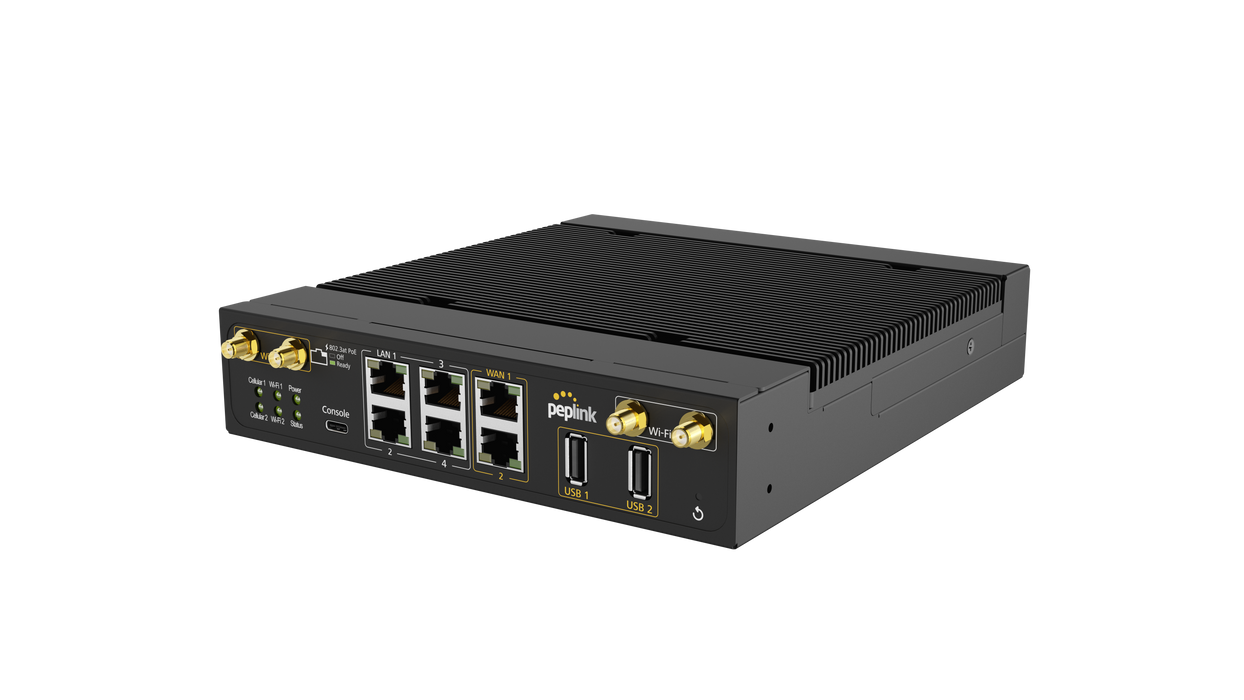

The Peplink MAX MBX Mini 5G is a compact, high-performance dual-cellular SD-WAN router designed for reliable connectivity in transportation, industrial environments, enterprise networks, and mission-critical mobile deployments. Featuring two independent embedded 5G modems, it enables simultaneous cellular connections across multiple networks, helping organizations maintain dependable internet access wherever their operations take them.
Combining powerful SpeedFusion technology, dual-band Wi-Fi 5, Gigabit Ethernet connectivity, and PoE+ capabilities, the MAX MBX Mini delivers enterprise-grade networking in a rugged, space-efficient design. Its flexible power options and integrated GPS support make it particularly well suited for vehicle installations and remote locations.
Key Features:
Dual Embedded 5G Connectivity: Two independent 5G cellular modems provide simultaneous connections for multi-carrier networking, load balancing, and cellular redundancy.
5G NSA with LTE Cat 20 Fallback: Supports 5G Non-Standalone Sub-6 GHz connectivity with LTE Advanced Pro fallback, providing flexibility across supported cellular networks.
SpeedFusion Bandwidth Bonding: Combines multiple WAN connections through Peplink SpeedFusion technology to improve connection resilience and utilize available bandwidth more effectively.
Seamless Hot Failover & WAN Smoothing: Helps maintain network connectivity during WAN interruptions and reduces the impact of packet loss on sensitive applications.
Dual-Band Wi-Fi 5 Connectivity: Integrated 802.11ac Wi-Fi with 2×2 MIMO supports simultaneous 2.4 GHz and 5 GHz operation, enabling Wi-Fi access point and Wi-Fi WAN functionality.
Gigabit Ethernet Connectivity: Features two Gigabit Ethernet WAN ports and four Gigabit Ethernet LAN ports for connecting wired internet services, networking equipment, and local devices.
Dual USB WAN Interfaces: Two USB 2.0 interfaces support compatible external WAN devices, providing additional connectivity options.
Up to 2.5 Gbps Router Throughput: Delivers routing performance suitable for demanding enterprise networking and multi-WAN deployments.
Flexible SIM Redundancy: Four Nano-SIM slots provide two SIM options per cellular modem for flexible carrier selection and backup connectivity.
PoE+ Device Connectivity: Supports up to six 802.3at PoE+ outputs with compatible 54V power supplies and the required firmware, simplifying power delivery to supported network devices.
Integrated GPS Support: GPS functionality enables location tracking and monitoring for fleet management, transportation, and mobile networking applications.

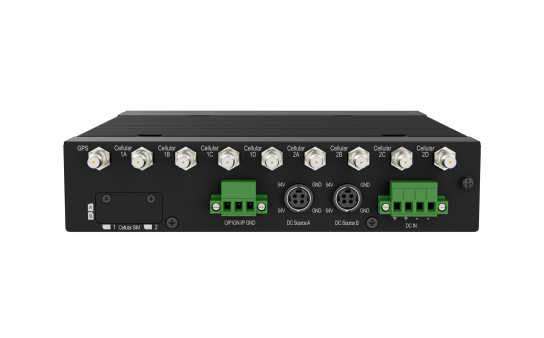

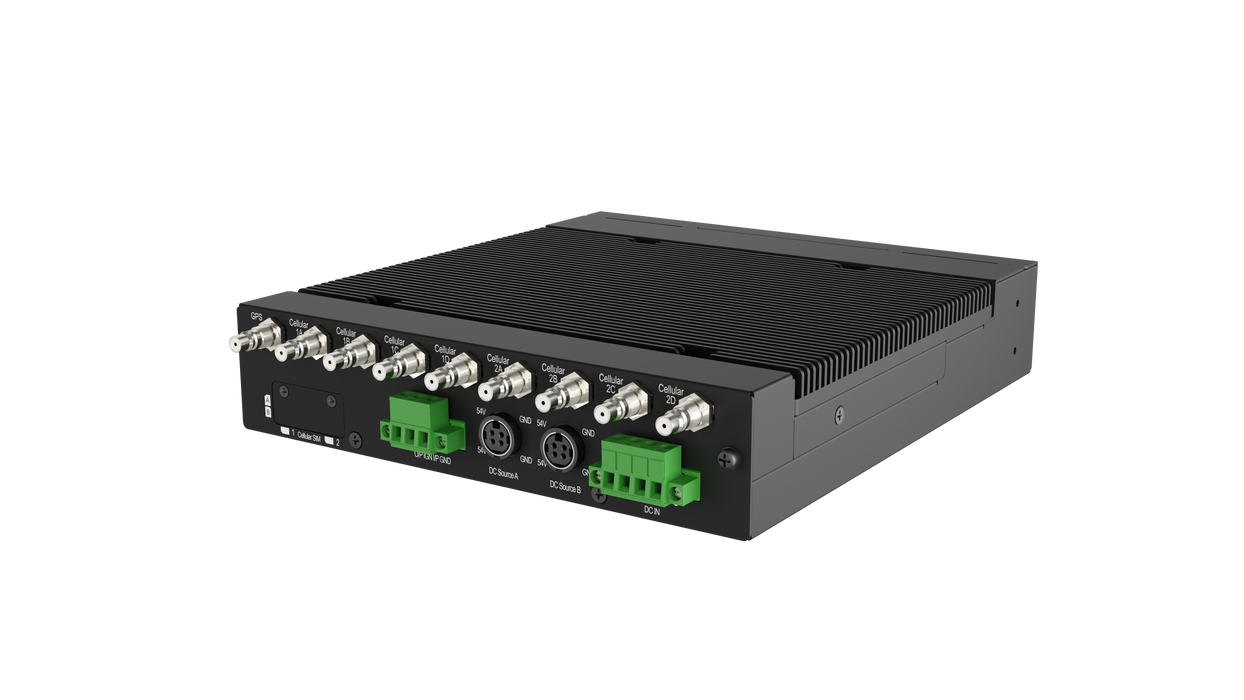

Redundant Power Options: Multiple DC power input options provide greater installation flexibility and power redundancy for demanding deployments.
Rugged Industrial Design: A durable metal enclosure with shock and vibration resistance, designed to operate in temperatures ranging from -40°C to 65°C (-40°F to 149°F).
InControl 2 Cloud Management: Enables centralized device monitoring, configuration, and remote network administration through Peplink's cloud management platform.
Applications:
The Peplink MAX MBX Mini 5G is designed for organizations requiring dependable high-speed connectivity in mobile, industrial, and distributed environments.
Transportation and Fleet Management: Maintain cellular connectivity for vehicle-mounted networking systems, GPS tracking, and fleet communications.
Public Safety and Emergency Operations: Support mission-critical field connectivity using compatible commercial cellular networks.
Industrial IoT and Remote Monitoring: Connect sensors, monitoring systems, and industrial networking equipment in remote locations.
Construction and Temporary Worksites: Deploy reliable internet connectivity where traditional fixed-line services are unavailable.
Enterprise Branch Networks: Provide multi-carrier cellular connectivity and WAN redundancy for distributed business locations.
Mobile Surveillance and Security: Connect compatible cameras, monitoring equipment, and other networked devices through Ethernet and PoE+.
Compact Design. Powerful Multi-Carrier Connectivity.
The Peplink MAX MBX Mini 5G combines dual 5G connectivity, SpeedFusion technology, Gigabit Ethernet, and flexible power options in a compact industrial networking solution. Designed for demanding mobile and remote deployments, it provides the performance and network resilience businesses need to keep essential operations connected.
External cellular antennas are sold separately. Full six-port PoE+ operation requires two compatible 54V DC inputs and firmware 8.4.0 or later.
