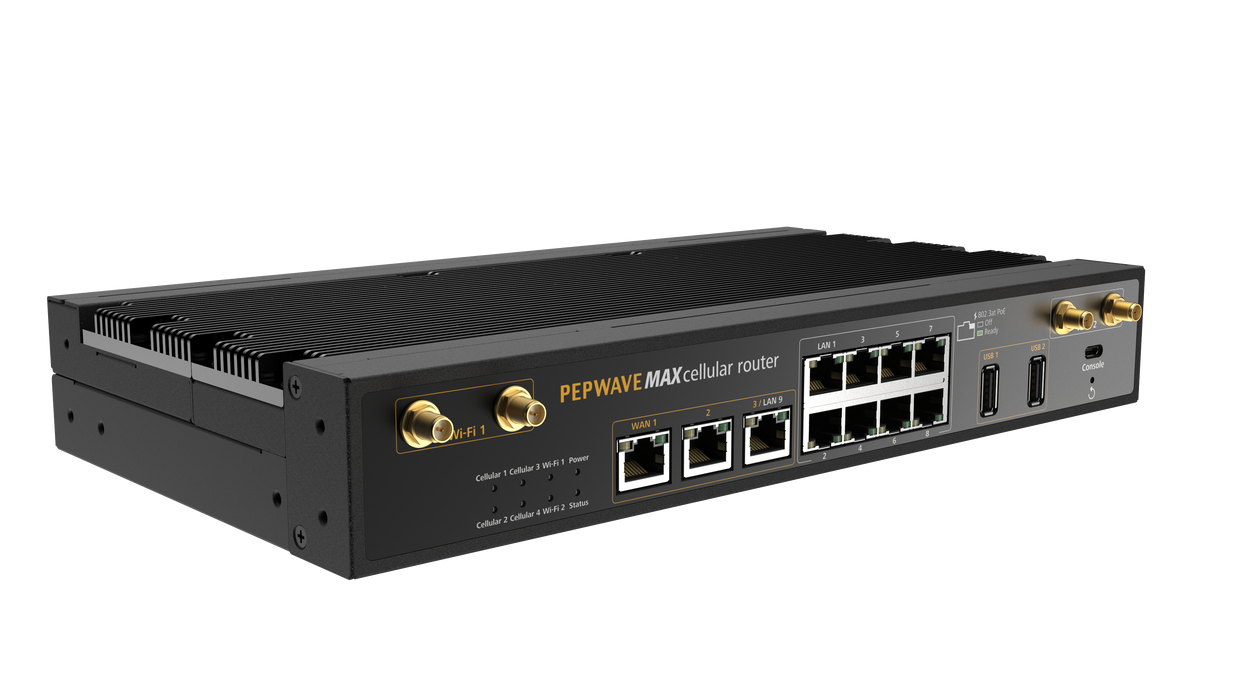

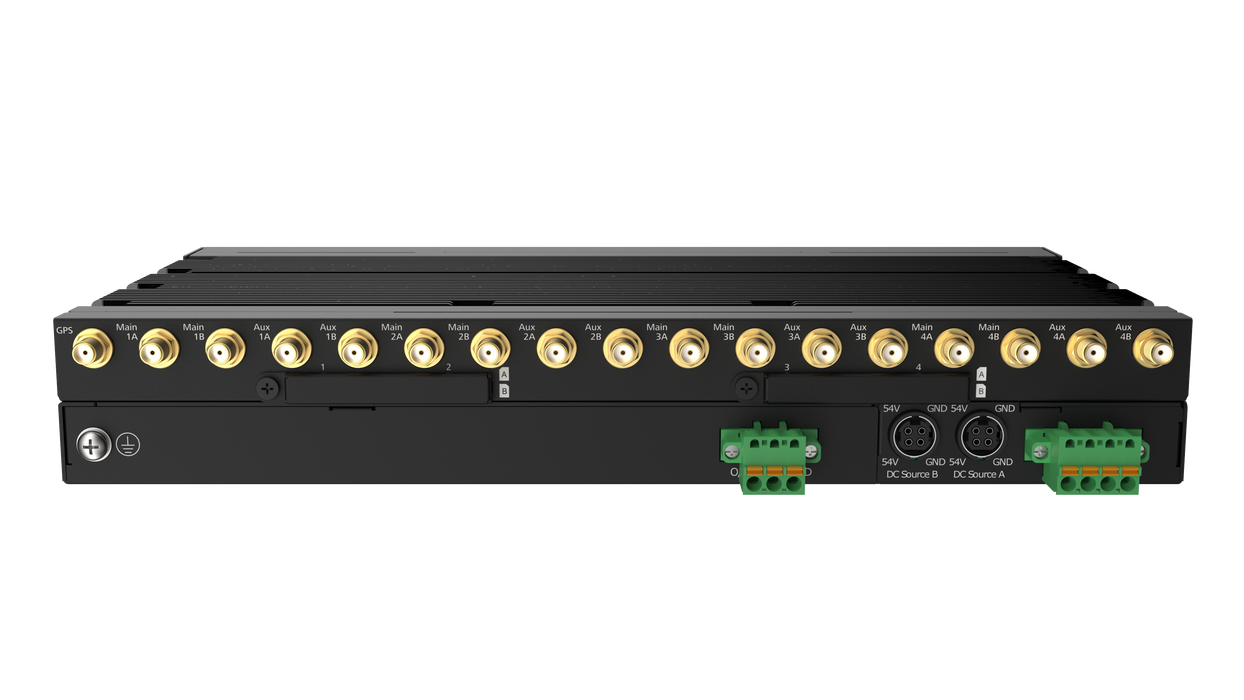

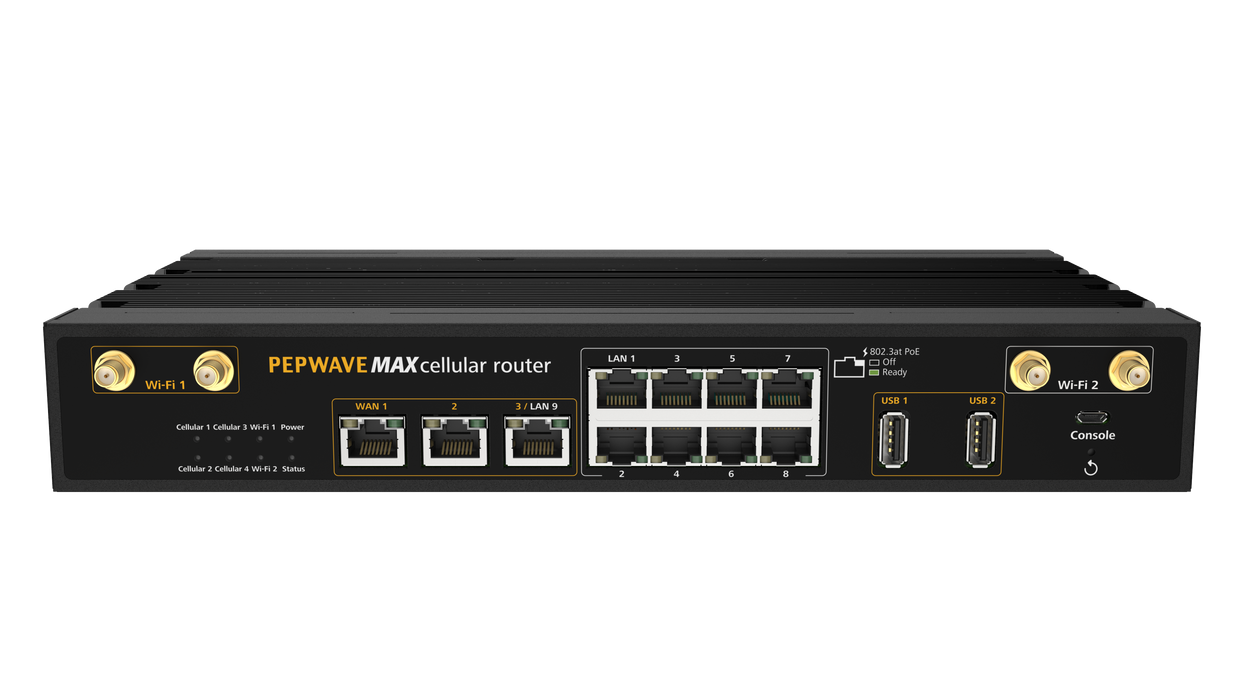

The Peplink MAX HD4 MBX CAT 20 is a high-performance, quad-cellular SD-WAN router designed to deliver reliable multi-carrier connectivity for transportation, public safety, enterprise networking, and mission-critical mobile operations. Equipped with four independent LTE Advanced Pro Cat 20 modems, it enables simultaneous connections across multiple cellular networks, providing flexible WAN redundancy and dependable connectivity for demanding environments.
Powered by Peplink SpeedFusion technology, the MAX HD4 MBX CAT 20 combines bandwidth bonding, seamless failover, and WAN Smoothing to improve network resilience and application performance. Its rugged, fanless industrial design, built-in dual-band Wi-Fi, Gigabit Ethernet connectivity, and optional PoE+ capabilities make it an effective networking solution for mobile and remote deployments.
Key Features:
Quad LTE Advanced Pro Cat 20 Connectivity: Four independent embedded 4G LTE Cat 20 modems support simultaneous cellular connections across compatible carriers, providing high-speed multi-carrier connectivity and network redundancy.
Global Cellular Compatibility: Supports a broad selection of LTE frequency bands for international deployments, with compatibility depending on regional carrier networks and supported services.
FirstNet Certified: Certified for FirstNet and supported by major U.S. cellular carriers, including AT&T, T-Mobile, and Verizon, making it suitable for eligible public-safety connectivity deployments.
SpeedFusion Bandwidth Bonding: Combines multiple WAN connections through Peplink SpeedFusion technology to improve bandwidth utilization and connection resilience.
Seamless Hot Failover: Helps maintain active VPN sessions when a cellular or wired connection becomes unavailable, reducing interruptions to business-critical applications.
WAN Smoothing: Uses redundant packet transmission across multiple WAN connections to reduce packet loss and improve the reliability of real-time communications.
Eight Built-in SIM Slots: Provides two Mini-SIM slots per cellular modem, allowing flexible carrier selection and redundant cellular configurations.
Expandable SIM Capacity: Supports up to 16 SIM cards with an optional Peplink SIM Injector, providing additional carrier flexibility and remote SIM management.
Gigabit Ethernet Connectivity: Features two dedicated Gigabit Ethernet WAN ports, one configurable Gigabit Ethernet WAN/LAN port, and eight Gigabit Ethernet LAN ports for connecting networking equipment and local devices.
Dual-Band Wi-Fi 5: Integrated 802.11ac Wi-Fi with 2×2 MIMO supports simultaneous 2.4 GHz and 5 GHz operation for wireless access point and Wi-Fi WAN connectivity.
Up to 2.5 Gbps Router Throughput: Provides high-performance routing for multi-WAN operations, enterprise applications, and demanding mobile deployments.
SpeedFusion VPN Performance: Supports up to 600 Mbps VPN throughput without encryption and up to 500 Mbps with 256-bit AES encryption.
Dual USB WAN Interfaces: Two USB interfaces provide additional WAN connectivity options through compatible external devices.
Optional PoE+ Connectivity: Supports up to eight 802.3at PoE+ LAN outputs with compatible activation kits and power supplies, simplifying power delivery to network equipment such as IP cameras and wireless access points.
Integrated GPS Functionality: Enables location monitoring and fleet tracking for transportation and mobile networking applications.
Ignition Sensing: Supports integration with vehicle ignition systems for power management in mobile installations.
Rugged Fanless Design: Features a durable industrial-grade metal enclosure with passive cooling for demanding transportation and industrial environments.
Wide Operating Temperature Range: Supports operation from -40°C to 65°C (-40°F to 149°F).
InControl 2 Cloud Management: Enables centralized network monitoring, remote configuration, and device administration through Peplink's cloud-based management platform.
Applications:
The Peplink MAX HD4 MBX CAT 20 is designed for organizations requiring dependable, high-speed connectivity across multiple cellular networks.
Public Safety and Emergency Services: Support mobile command centers, emergency response vehicles, and field communications using eligible FirstNet and other compatible cellular services.
Transportation and Fleet Management: Maintain connectivity for vehicle-mounted networking equipment, fleet tracking, passenger services, and operational communications.
Enterprise Branch Connectivity: Provide cellular WAN redundancy and resilient networking for distributed business locations.
Industrial IoT and Remote Monitoring: Connect industrial controllers, telemetry systems, and monitoring equipment across remote locations.
Construction and Temporary Worksites: Establish reliable internet connectivity where fixed broadband infrastructure is limited or unavailable.
Mobile Surveillance and Security: Connect compatible IP cameras, security systems, and network equipment using Ethernet and optional PoE+ outputs.
Broadcasting and Live Events: Support remote video transmission and event networking using multiple cellular connections.
High-Performance Quad-Cellular Networking for Mission-Critical Operations
The Peplink MAX HD4 MBX CAT 20 combines four LTE Advanced Pro Cat 20 modems, SpeedFusion technology, Gigabit Ethernet connectivity, and flexible power options in a rugged industrial networking platform. With FirstNet certification, global LTE band support, and centralized cloud management, it provides a dependable networking solution for demanding mobile, enterprise, and public-safety deployments.
