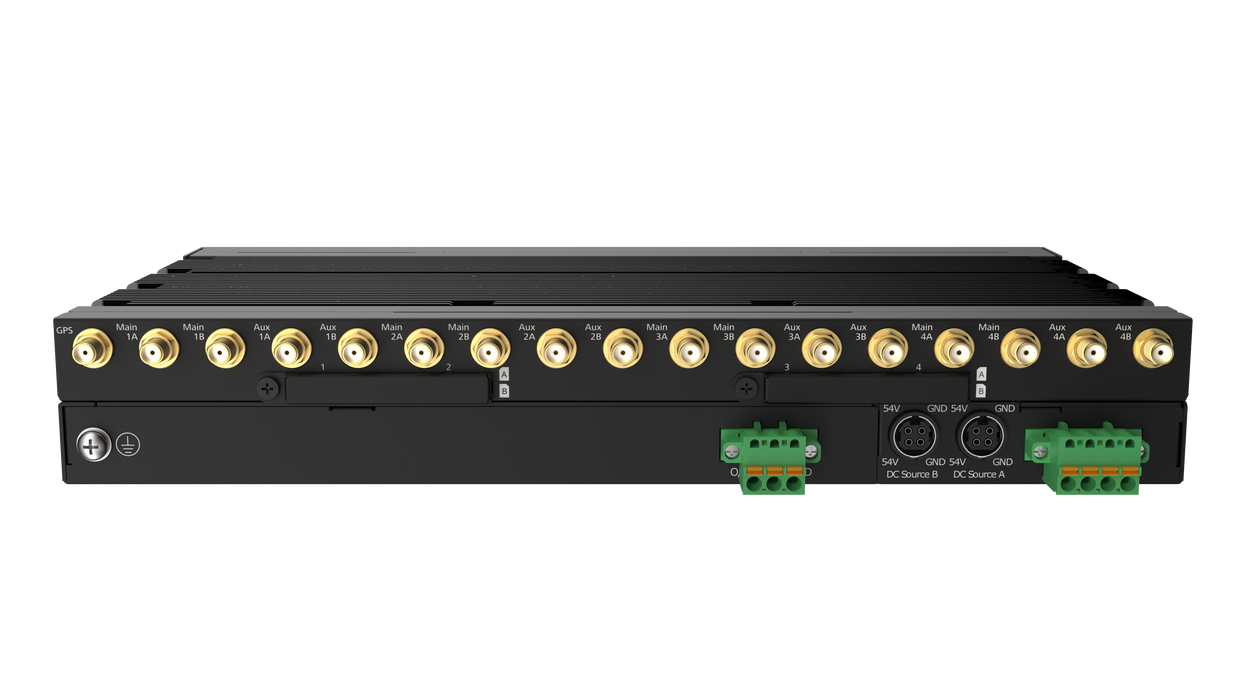

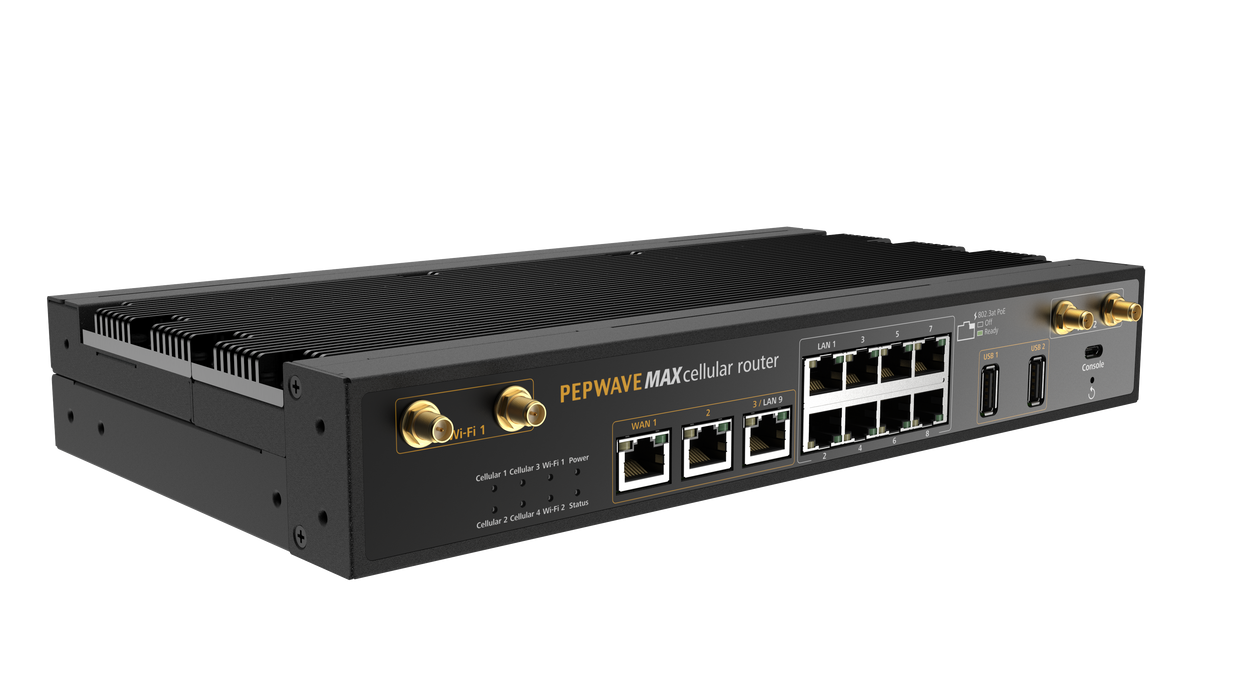

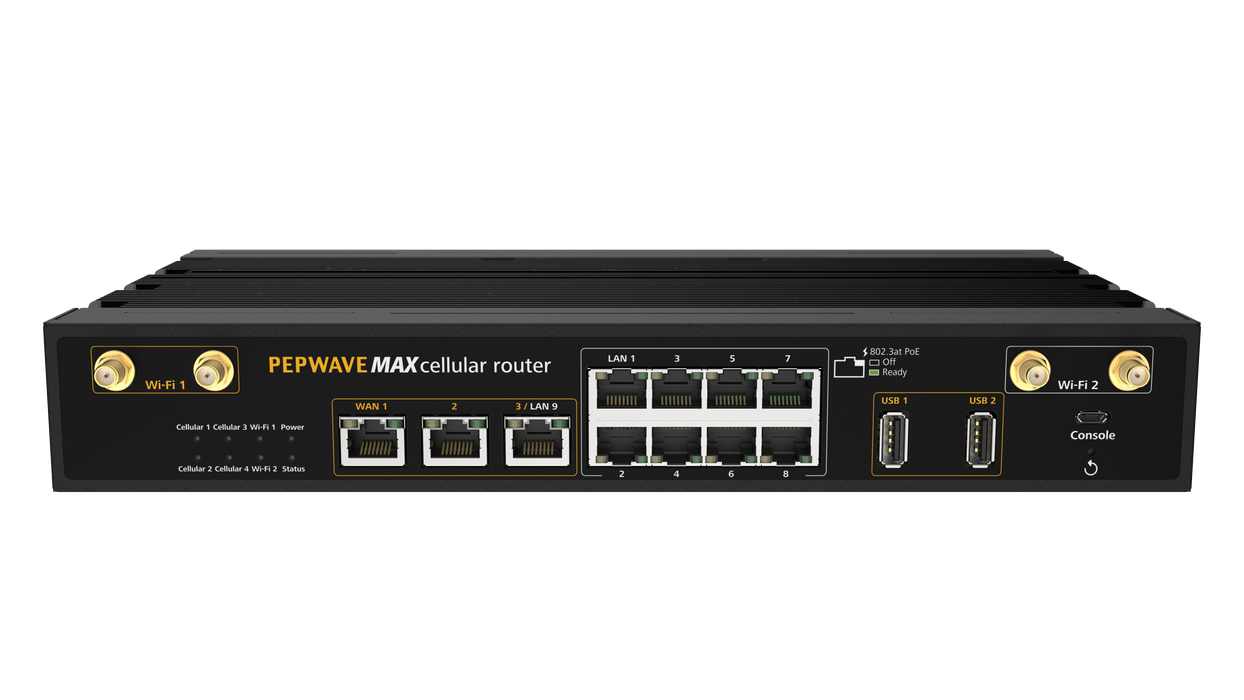

Peplink MAX HD4 MBX 5G – Quad X65 5G Router (FirstNet Certified)

The Peplink MAX HD4 MBX 5G is a high-performance, rugged enterprise SD-WAN router equipped with four embedded Qualcomm Snapdragon X65 5G modems. Designed for mission-critical connectivity, public safety, transportation, maritime, and mobile enterprise deployments, it combines multiple cellular connections using Peplink SpeedFusion technology for reliable, high-speed networking.

Supporting both 5G Standalone (SA) and Non-Standalone (NSA), the MAX HD4 MBX 5G delivers flexible multi-carrier connectivity, seamless failover, and advanced bandwidth bonding in a fanless industrial-grade enclosure.

Key Features:

• 4× embedded Qualcomm Snapdragon X65 5G modems with LTE fallback

• 5G SA & NSA Sub-6 GHz connectivity

• 8× SIM slots, expandable to 16 SIMs with an optional SIM Injector

• Up to 2.5 Gbps router throughput

• 2× Gigabit Ethernet WAN + 9× Gigabit Ethernet LAN (configurable to 3 WAN + 8 LAN)

• 2× USB WAN interfaces

• Dual-band Wi-Fi 5 (2.4 GHz + 5 GHz)

• Up to 8× 802.3at PoE+ outputs with appropriate power supplies and activation

• SpeedFusion Bandwidth Bonding, WAN Smoothing & Hot Failover

• GPS and ignition sensing for mobile and vehicle deployments

• Fanless, rugged metal enclosure

• Operating temperature: -40°C to 65°C (-40°F to 149°F)

• Recommended for 50–500 users

• FirstNet Certified, with AT&T, T-Mobile, and Verizon carrier certifications

• InControl 2 cloud-based network management

Note: External cellular antennas are sold separately. Full 8-port PoE+ functionality requires two compatible 54V power inputs and the appropriate PoE activation.
