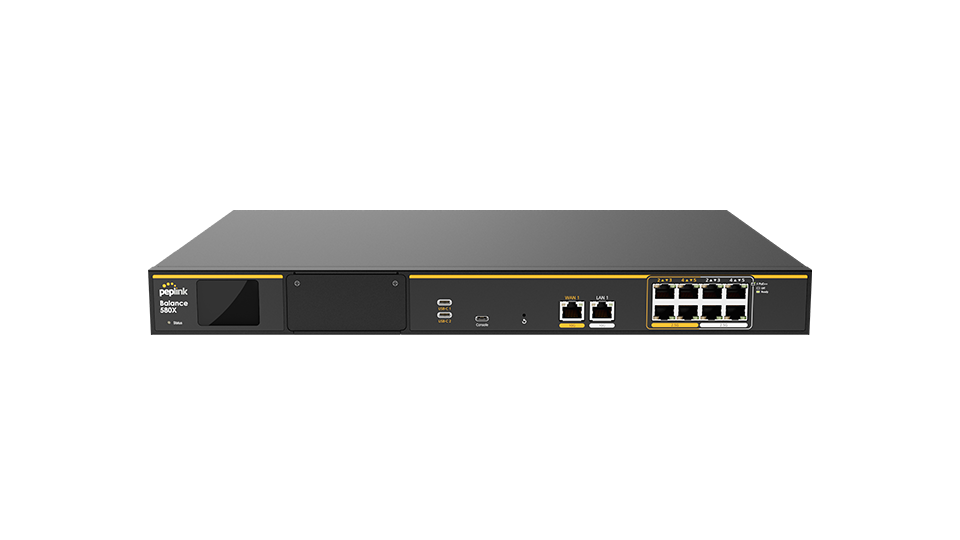

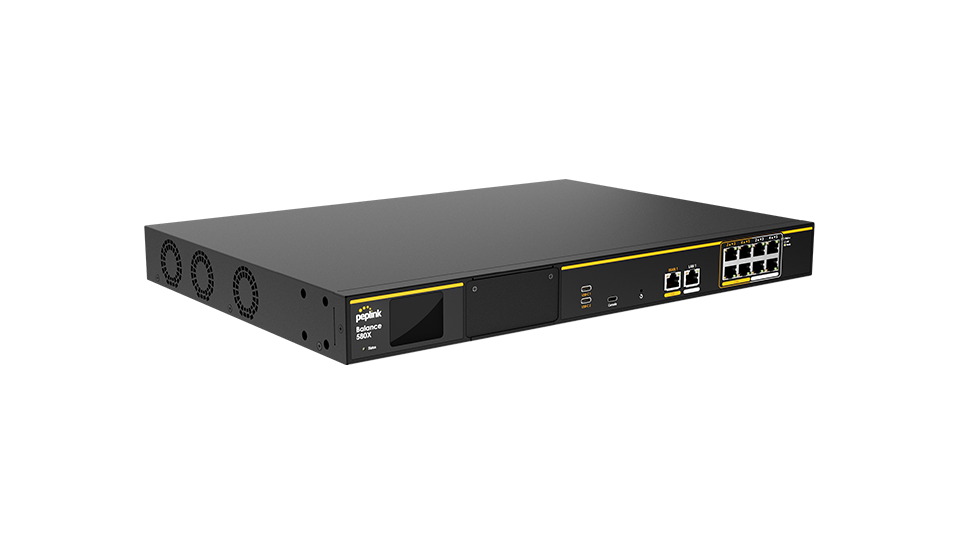

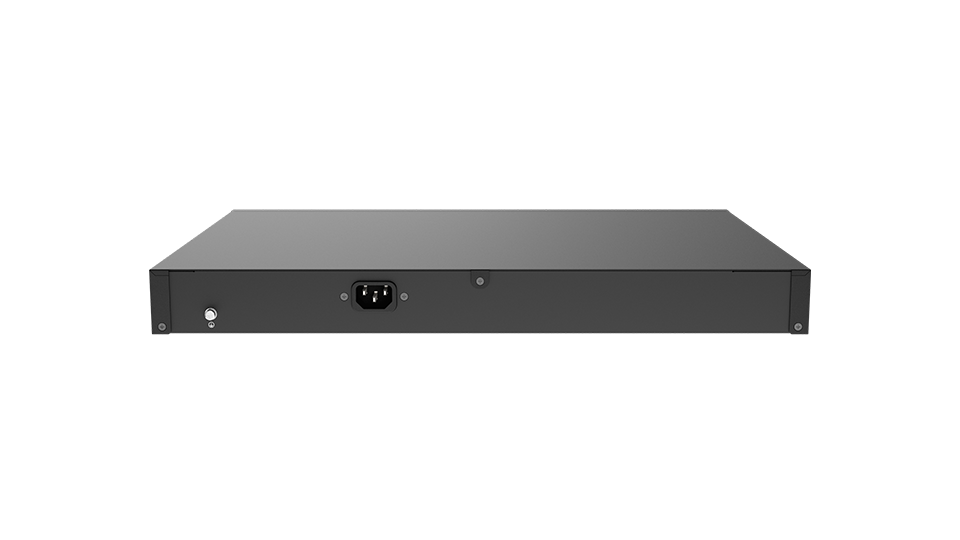

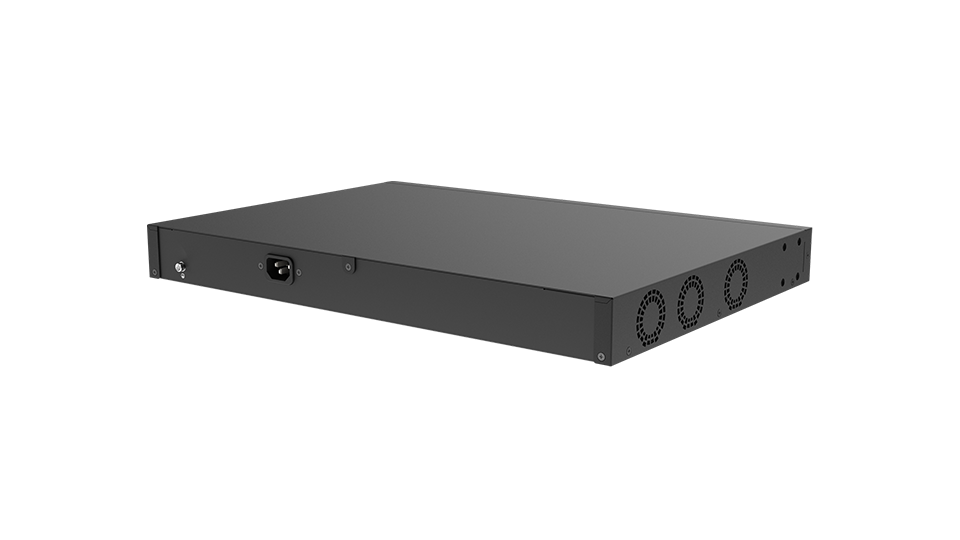

The Peplink Balance 580X is a high-performance enterprise SD-WAN router designed to deliver reliable, scalable connectivity for corporate headquarters, large branch offices, campus networks, and demanding business environments. Featuring advanced 10 Gigabit and 2.5 Gigabit Ethernet connectivity, high-power PoE++ outputs, and up to 8 Gbps routing throughput, it provides the performance and flexibility required for modern enterprise networking.
Powered by Peplink SpeedFusion technology, the Balance 580X enables intelligent WAN load balancing, bandwidth bonding, seamless failover, and WAN Smoothing to help maintain dependable communications across multiple internet connections. Its modular FlexModule Mini expansion slot, Docker-based edge computing capabilities, and centralized network management make it a versatile solution for organizations seeking high-performance connectivity and long-term network flexibility.
Key Features:
High-Performance Enterprise Routing: Delivers up to 8 Gbps stateful firewall and router throughput, supporting bandwidth-intensive business applications, high-speed internet connections, and demanding enterprise network environments.
10 Gigabit Ethernet Connectivity: Features one dedicated 10GbE WAN port and one dedicated 10GbE LAN port for high-speed internet access and enterprise network infrastructure.
Flexible Multi-Gigabit Ethernet Ports: Four configurable 2.5GbE WAN/LAN ports allow organizations to adapt their network topology to changing connectivity requirements.
High-Speed LAN Connectivity: Four additional 2.5GbE LAN ports provide reliable multi-gigabit connections for switches, access points, and other networking equipment.
High-Power PoE++ Connectivity: Eight 802.3bt Type 4 PoE++ ports deliver a combined power budget of up to 720W, allowing compatible access points, surveillance cameras, and other networking devices to receive power directly from the router.
SpeedFusion Bandwidth Bonding: Combines multiple WAN connections through Peplink SpeedFusion technology to improve bandwidth utilization, connection resilience, and network performance across distributed locations.
Seamless Hot Failover: Helps maintain active VPN sessions during WAN interruptions, reducing downtime and keeping business-critical applications connected.
WAN Smoothing: Uses redundant packet transmission across multiple WAN connections to reduce packet loss and improve the reliability of real-time applications such as video conferencing, VoIP, and remote communications.
Up to 1 Gbps SpeedFusion VPN Throughput: Supports secure high-performance VPN connectivity, with up to 1 Gbps throughput both without encryption and with AES-256 encryption.
Scalable SpeedFusion VPN Connections: Supports up to 100 SpeedFusion/PepVPN peers by default, expandable to 300 or 500 peers through optional software licenses.
Optional LTE/5G Cellular Expansion: A dedicated FlexModule Mini slot supports compatible optional LTE Advanced, 5G cellular, or SIM Injector modules, allowing organizations to add cellular connectivity and SIM management capabilities when needed.
Dual USB-C WAN Interfaces: Two USB-C interfaces support compatible external WAN devices, including Peplink cellular adapters, providing additional connectivity options.
Integrated Edge Computing: Supports Docker containers with 8GB of internal storage, allowing compatible applications, network monitoring services, and automation workloads to operate locally on the router.
Intelligent Multi-WAN Load Balancing: Distributes network traffic across available WAN connections using configurable traffic policies to improve network efficiency and maintain connectivity.
Enterprise Network Security: Includes stateful firewall protection, VPN functionality, VLAN support, content filtering, and advanced traffic management features to help protect business networks.
High Availability Support: Supports high-availability deployments to improve network resilience and minimize interruptions to business operations.
Centralized Access Point and Switch Management: Supports management of up to 100 compatible Peplink access points and switches, simplifying administration across enterprise environments.
InControl 2 Cloud Management: Enables centralized device monitoring, remote configuration, firmware management, and network administration through Peplink's cloud-based management platform.
1U Rackmount Design: Features a compact 1U rackmount enclosure suitable for standard enterprise networking racks, server rooms, and data centers.
Designed for Large Enterprise Networks: Recommended for deployments supporting approximately 500–2,000 users, depending on application requirements and network traffic.
Applications:
The Peplink Balance 580X is designed for organizations requiring reliable, high-speed, and scalable enterprise connectivity.
Corporate Headquarters: Support high-bandwidth internet connections, secure communications, and centralized network management for large business operations.
Enterprise Branch Networks: Connect distributed offices through secure SpeedFusion VPN connections and resilient multi-WAN networking.
Campus and Education Networks: Deliver multi-gigabit connectivity for educational institutions, corporate campuses, and facilities with large numbers of connected users.
Hospitality and Large Venues: Power compatible wireless access points through integrated PoE++ and provide reliable connectivity for guest networks and business infrastructure.
Video Surveillance and Security Systems: Connect and power compatible high-performance IP cameras, surveillance equipment, and monitoring systems.
Industrial and IoT Infrastructure: Support industrial networking, remote monitoring, and connected equipment, with optional LTE/5G cellular expansion for additional WAN redundancy.
Hybrid Fiber, Cellular, and Satellite Networks: Combine Ethernet-based internet connections, compatible Starlink terminals, and optional cellular WAN services for flexible connectivity and business continuity.
Edge Computing Deployments: Run compatible Docker applications locally to support network monitoring, automation, and distributed computing services.
Business Continuity and Disaster Recovery: Improve network availability through intelligent WAN management, SpeedFusion failover, and high-availability configurations.
Enterprise Performance. Multi-Gigabit Flexibility. Reliable Connectivity.
The Peplink Balance 580X combines up to 8 Gbps routing performance, 10GbE and 2.5GbE connectivity, powerful PoE++ outputs, SpeedFusion technology, and modular cellular expansion in one advanced enterprise networking platform. Designed for demanding business environments, it provides a scalable foundation for high-speed communications, centralized network management, and reliable multi-WAN connectivity.
Optional FlexModule Mini cellular and SIM management modules are sold separately. The base model does not include an embedded cellular modem or built-in Wi-Fi. Expansion of SpeedFusion VPN peer capacity requires additional licenses. Cloud management and certain advanced features may be subject to applicable PrimeCare subscriptions.
SKU: BPL-580X-PRM
