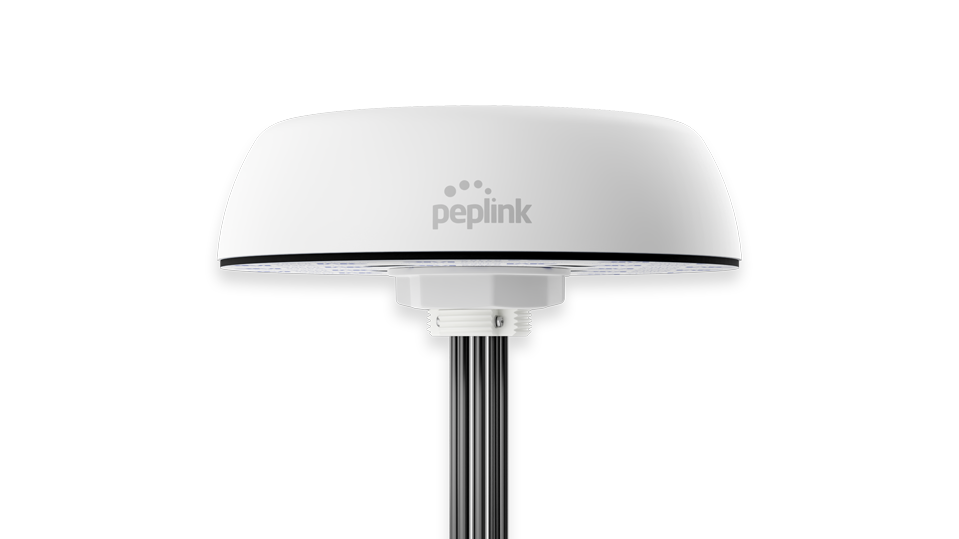

The Peplink Mobility 42G is a high-performance, 7-in-1 omnidirectional antenna system designed to enhance cellular, Wi-Fi, and GPS connectivity in demanding mobile and outdoor environments. Combining four LTE/5G antenna elements, two Wi-Fi antennas, and one GPS antenna in a single low-profile enclosure, it provides a convenient solution for transportation, public safety, maritime, and industrial networking applications.
Engineered for reliable connectivity, the Mobility 42G supports 4×4 MIMO cellular operation, dual-band Wi-Fi, and GPS reception. Its IP68-rated, UV-resistant housing and included 16 ft (4.8 m) cables make it suitable for installations where antenna placement flexibility and environmental durability are essential.
Key Features:
-
7-in-1 Antenna System: Integrates four LTE/5G cellular antenna elements, two Wi-Fi antenna elements, and one GPS antenna into a single compact enclosure, reducing the need for multiple external antennas.
-
4×4 MIMO LTE/5G Connectivity: Four independent cellular antenna elements support 4×4 MIMO operation with compatible routers, helping improve signal reception and support higher data rates where network conditions allow.
-
5G-Ready Wideband Coverage: Supports cellular frequencies from 600 MHz to 6000 MHz, including LTE and compatible Sub-6 GHz 5G bands.
-
Dual-Band Wi-Fi Connectivity: Two integrated Wi-Fi antenna elements support 2×2 MIMO operation across the 2.4 GHz and 5 GHz bands for compatible wireless networking equipment.
-
Integrated GPS Antenna: A dedicated GPS antenna with an integrated low-noise amplifier supports satellite signal reception for compatible location tracking, navigation, and fleet management systems.
-
IP68-Rated Weatherproof Design: The sealed housing provides protection against dust and water ingress, making it suitable for exposed outdoor and mobile installations.
-
Omnidirectional Coverage: Designed to receive and transmit cellular and Wi-Fi signals across a 360-degree horizontal coverage area, reducing the need for precise directional alignment.
-
High-Gain Antenna Performance: Provides peak cellular antenna gain of up to 8.2 dBi, depending on frequency, installation conditions, and cable losses.
-
16 ft (4.8 m) Integrated Cables: Includes seven antenna cables for flexible installation and connection to compatible networking equipment.
-
SMA and RP-SMA Connectors: Features SMA Male connectors for cellular and GPS connections and RP-SMA Male connectors for Wi-Fi connections.
-

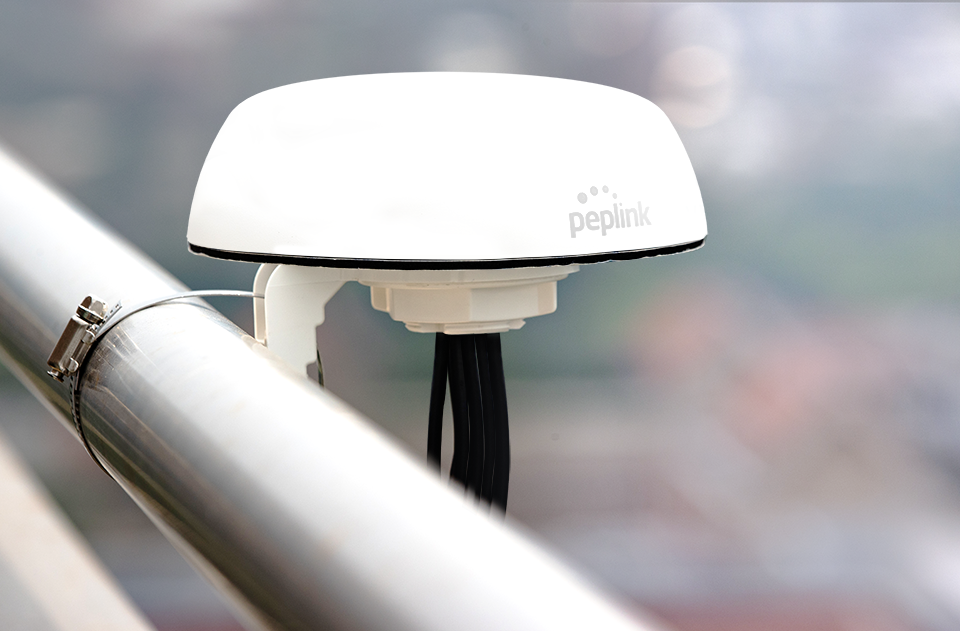

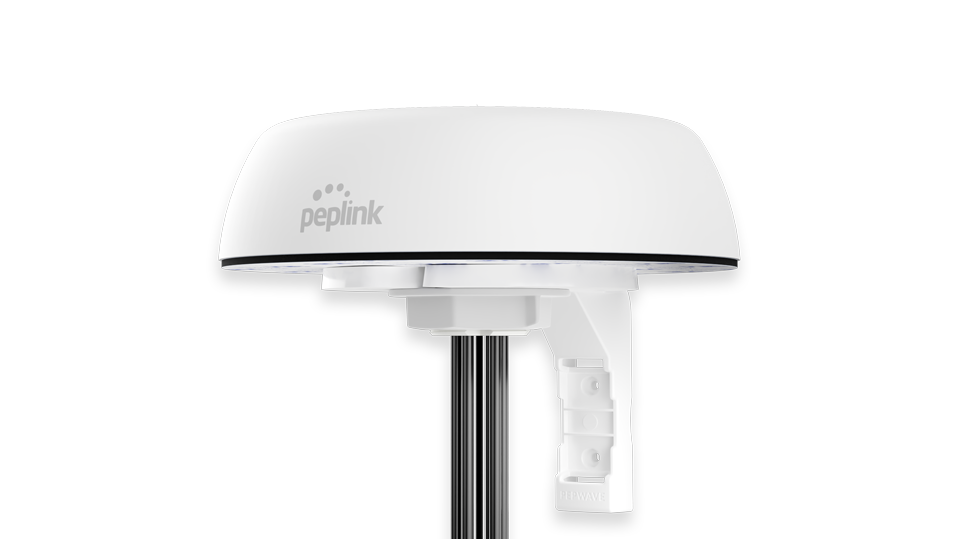

Flexible Mounting Options: Supports panel, wall, and pole installations, with mounting accessories designed for convenient deployment.
-
Compact Low-Profile Housing: The white enclosure measures approximately 208 mm in diameter and 58 mm in height, excluding the mounting spigot.
-
Wide Operating Temperature Range: Designed to operate from -40°C to 80°C (-40°F to 176°F).
-
UV-Resistant Construction: Features a durable polycarbonate housing designed for prolonged exposure to outdoor conditions.
Applications:
The Peplink Mobility 42G is designed for installations requiring combined cellular, Wi-Fi, and GPS antenna functionality.
-
Transportation and Fleet Management: Improve external antenna placement for vehicle-mounted cellular routers, fleet communications, and GPS tracking systems.
-
Public Safety and Emergency Services: Support cellular connectivity for emergency vehicles, mobile command units, and field networking equipment.
-
Maritime Operations: Provide external cellular and Wi-Fi antenna connectivity for vessels operating within supported network coverage.
-
Mobile Healthcare: Support connectivity for ambulances, medical transport vehicles, and mobile healthcare equipment.
-
Industrial IoT and Remote Monitoring: Connect compatible cellular routers and monitoring systems in demanding industrial environments.
-
Mobile Workstations and Service Vehicles: Provide a single external antenna system for cellular, Wi-Fi, and GPS-equipped networking devices.
One Antenna. Multiple Connectivity Technologies.
The Peplink Mobility 42G combines 4×4 MIMO LTE/5G, dual-band Wi-Fi, and GPS functionality in a rugged IP68-rated enclosure. With wideband coverage, integrated 16 ft cables, and flexible mounting options, it simplifies external antenna deployment for mobile, industrial, and outdoor networking applications.
This is an external antenna, not a cellular router or modem. LTE/5G, Wi-Fi, and GPS functionality require compatible connected equipment. Verify antenna port counts, connector types, and supported frequency bands before installation.
